Trim removal and dust collection systems are essential components in modern corrugated and paper converting operations. Engineered Recycling Systems delivers advanced solutions that combine scrap handling, vacuum transfer, and air filtration—designed to meet today’s industrial demands and tomorrow’s compliance standards.

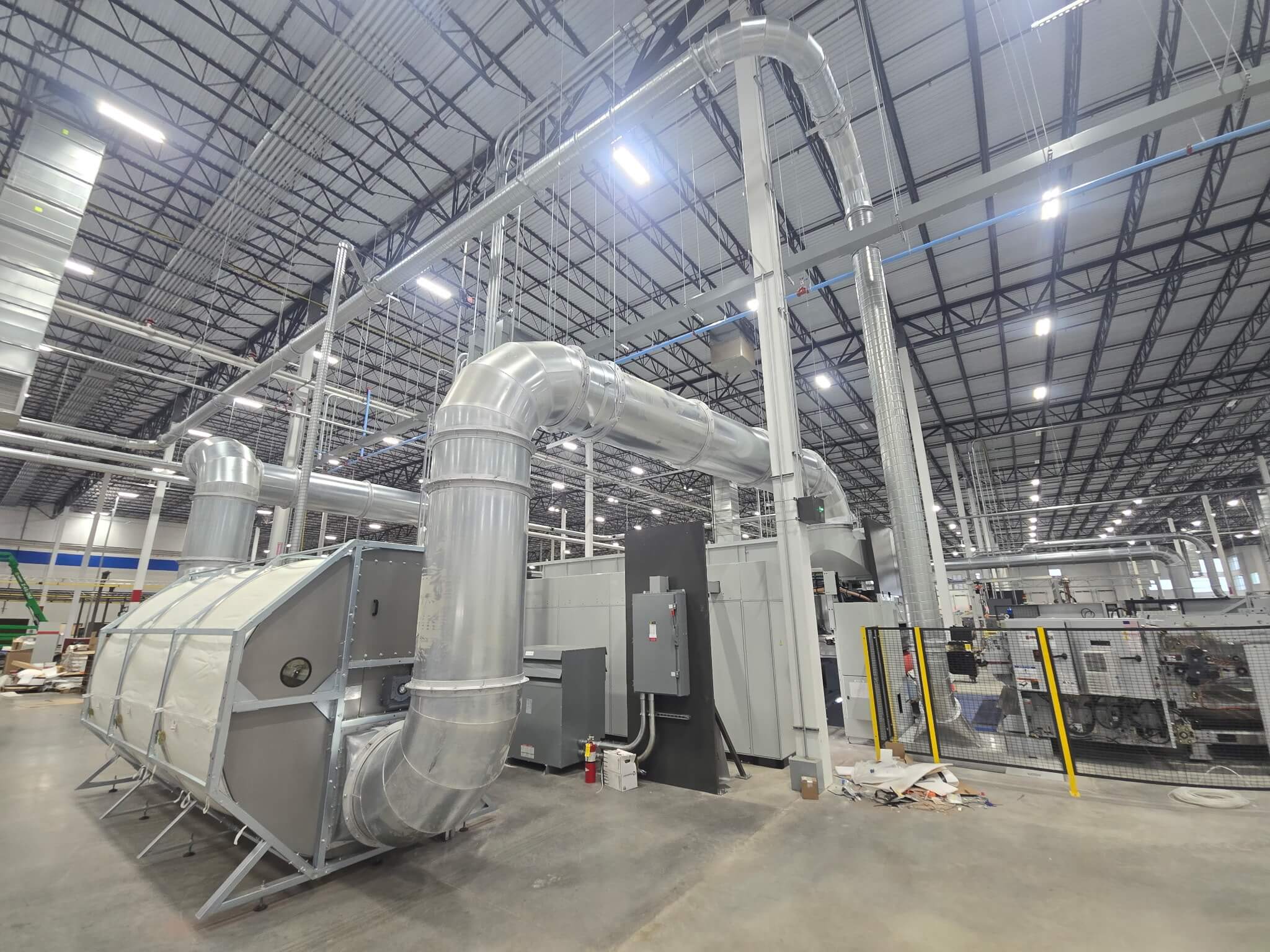

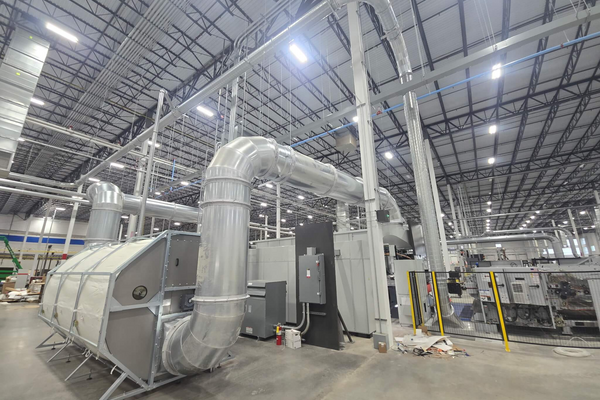

Departing from conventional options in the marketplace, ERS has modernized technology for scrap systems through the use of two defining features: the Balancing Fan and CCM® Filter. As air, dust and scrap enter the system through the ERS LPS (low profile separator) and scrap deposits into the baler chute, a balancing fan is installed to neutralize down pressure in the baler chute and ensure balanced energy throughout that adjusts automatically with system fluctuating air flows.

With the utilization of a balancing fan, the system uses only the amount of horsepower necessary to operate. The remaining air and dust is then pneumatically conveyed to the CCM® Filter, which includes rotating and oscillating suction nozzles.
Inside the filter the nozzles continuously vacuum any dust and waste from the filter media. The deep filter cleaning every 2-3 minutes results in low pressure loss. The dust is then conveyed to a high efficiency dust collection cyclone which discharges into a dust pucker. These dust pucks can then go into a dumpster or back into the baler chute.

Compliant with workplace safety, health, and fire protection guidelines.
